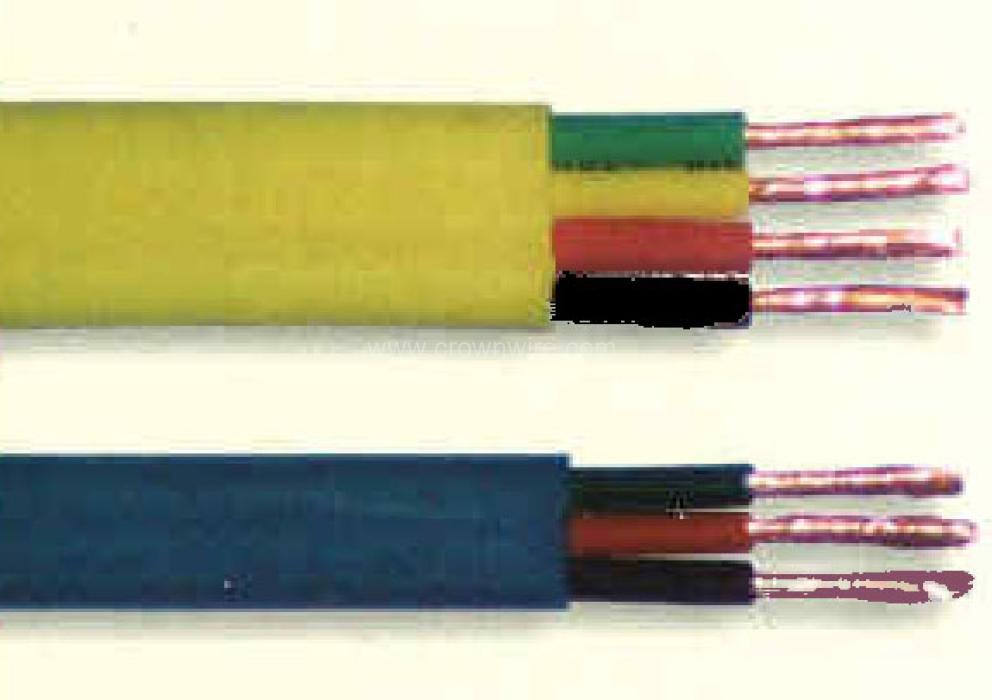

Item # 12/3FNFG, Flat Neoprene Submersible Pump Cable
- Flat Jacketed Type TPE Submersible Pump Cable With Ground
- 90°C Dry to 75°C Wet / 600 Volts.
- Sequentially Marked: 0-500 ft 0-1000 ft
MORE IMAGES
| Ground Wire | With |
| Number of Conductors | 4 |
| Strand Qty./Size | 65/0.010 |
| Insulation Nominal Thickness | 0.030 in |
| Weight per M Ft. | 121 lbs |
| Voltage Rating | 600 Volts |
| Conductor Size | 12 AWG |
| Jacket Thickness | 0.030 mil |
| Temperature Rating | Dry: 90 °C Wet: 75 °C |
For use within the well casing supplying power to the submersible pump. Maximum conductor operating temperature 90°C (to 75°C wet) in circuits not exceeding 600 volts. Flexible to -65°C. Meets oil requirements of 60°C per UL 83. Also for agriculture, farming and livestock where supplying water is needed.
Annealed bare stranded copper conductors insulated with TPE, running parallel with a flexible low temperature TPE light blue jacket for improved abrasion protection and flexibility in cold weather climates. UL Listed Deep Well Submersible Pump Gable. Grounding conductor sized per UL83
