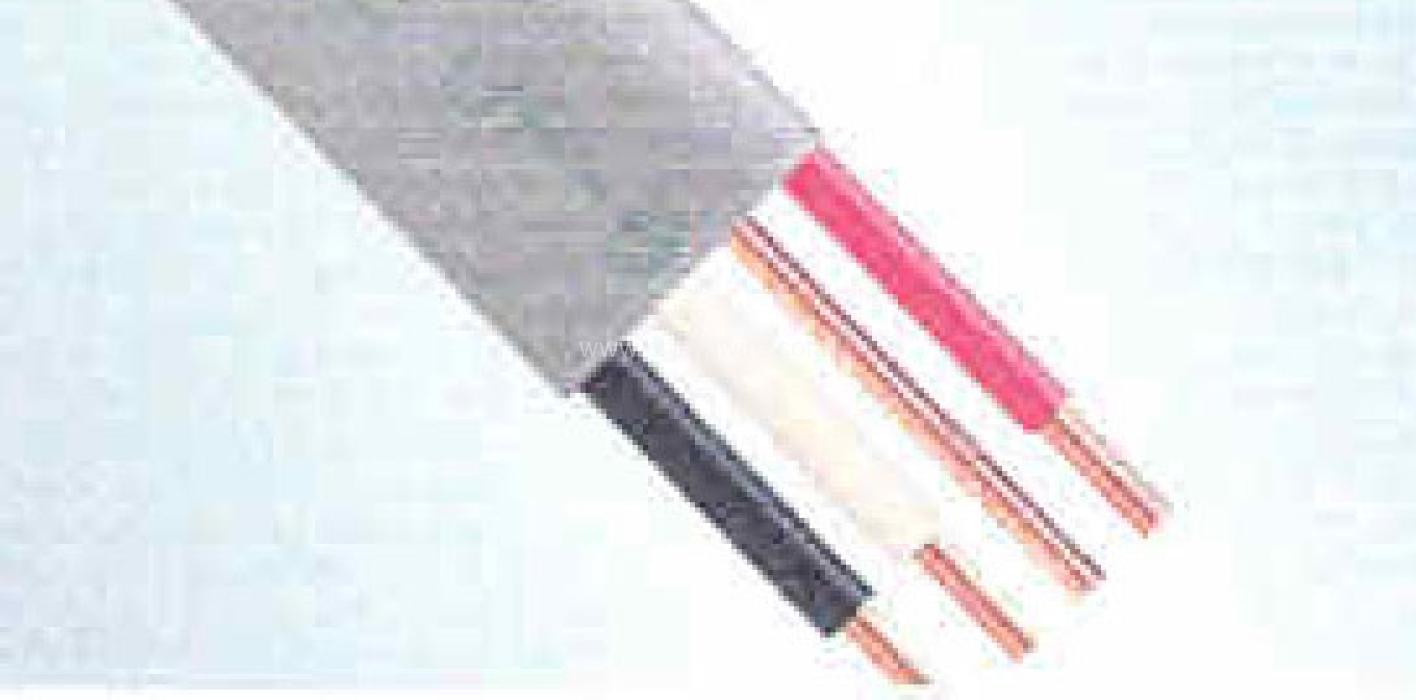

Item # 10/3UF-B, Flat Parallel Type UF-B Submersible Pump Cable
- Underground Feederand Branch Circuit Cable
- Type UF-B with Ground
- PVC/Nylon Conductors with PVC Jacket
- 90°C Dry / 600 Volts.
MORE IMAGES
| Insulation Nominal Thickness | 0.024 in |
| Conductor Stranding | Solid |
| Nominal Cable Dimensions | 0.215 x 0.727 in |
| Jacket Nominal Thickness | 0.030 in |
| Insulation | Thermoplastic |
| Number Of Insulated Conductors | 4 |
| Conductor Size | 10 AWG |
| Grounding Conductor Size | 10 AWG |
| Copper Content | 125.9 LBS/MFT |
| Nominal Cable Weight | 191 LBS/MFT |
For use as feeder cable to outside post lamps,pumps and other loads or apparatus fed from a distribution point in an existing building.May also be used for interior branch circuit wiring in residential or agricultural buildings .May be direct buried or exposed to the direct rays of the sun .suitable for installation and used as defined by the National Electrical Code at Voltage up to 600 Volts at a conductor temperature of 90°C dry.
Annealed bare solid compressed copper conductors insulated with color-coded PVC and Clear nylon,running parallel,encapsulated in a sunlight,moisture,and fungus resistance PVC jacket.UL Listed per UL83 andUL 493.Meets or exceeds federal specification A-A-59544 and the requirements of the National Electrical Code (NEC).
