Item # 1-1/8CLI, 6x25 Casing/Tubing Line Steel Wire Rope IWRC
Construction grade wire rope used for pulling tubing and setting pipe. 6 Strands with 25 wires per strand, with a maximum of 12 outside wires.
|Number of Strands||6|
|Wires per Strand||25|
|Lay of Rope||Right Regular Lay|
|Wire Rope Grade||XIPS|
|Diameter||1 1/8 in|
|Nominal Strength||65 t|
|Weight per Foot||2.34 lbs|
|Regular Lay Rope||The most standard, and accepted for a wide range of applications. The direction of the individual wires is opposite to the direction of the strands. Because of this, the rope is less likely to untwist, and therefore is easier to handle than lang lay rope. This rope is also less subject to crushing.|

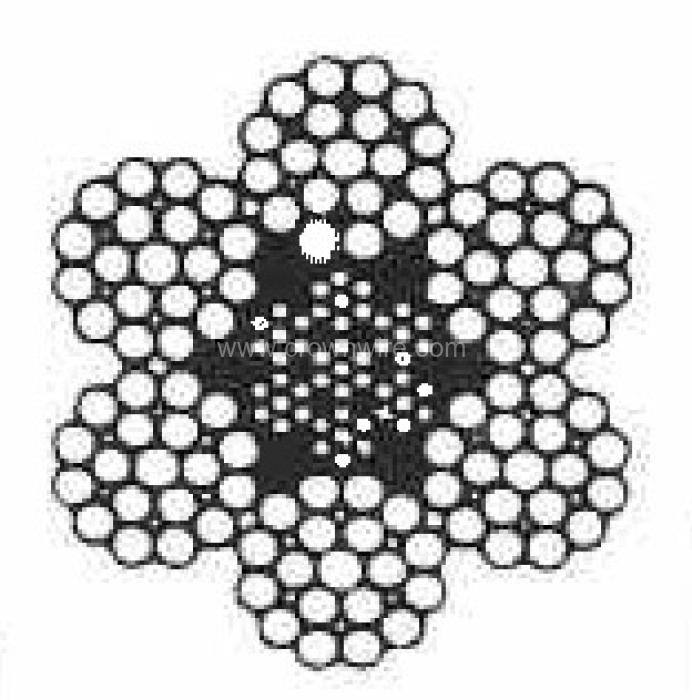

|Construction Count (Inside to Outside)||1 â€” 6 â€” (6) â€” 12|
The individual wires that form strands are most commonly available in high-carbon steel, generally supplied in an uncoated, or "bright" finish. Zinc coated, or "Galvanized" rope is available in some sizes and carries a nominal strength of 10% below that of a bright rope. On special request, wire rope can be drawn-galvanized, offering the same nominal strength as a bright rope.
Wires are laid geometrically to form strands, each composed of two or more wires. Breaking these strand configurations into several classifications is the basis for identifying wire rope.
The core is the supporting member of the rope, made of steel. A steel center rope yields a higher strength along with the ability to resist crushing Steel cores are required when the environment exceeds 180Â°(F)
